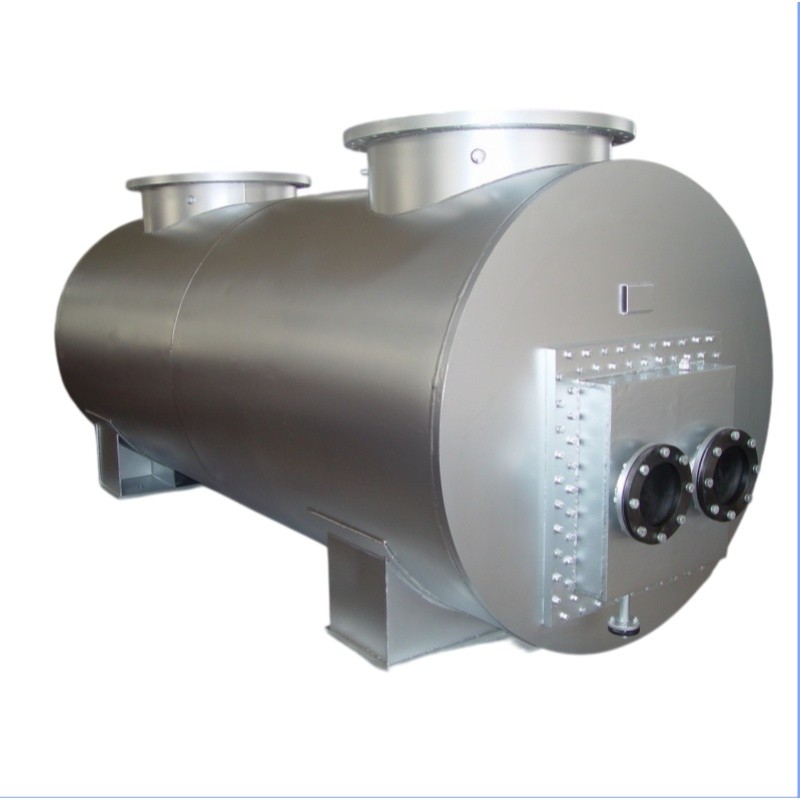

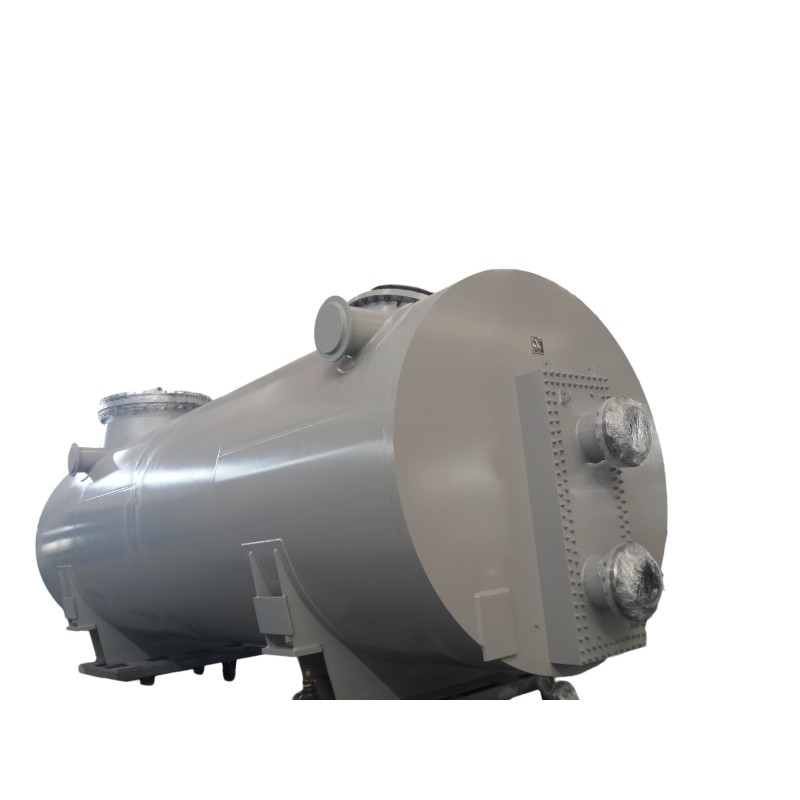

Compressor Cooler for Air Separation Unit | High-Efficiency ASU Intercooler & Aftercooler

Core Customer Pain Points & Targeted Technical

Pain Point 1: Low heat exchange efficiency and bulky equipment, resulting in high site occupancy and low production capacity

Most traditional shell-and-tube coolers matched with air separation compressors adopt ordinary smooth tube structures with single heat transfer components. The heat transfer area is limited, the heat exchange reaction speed is slow, and the overall equipment volume is large. For Middle East and European industrial parks with high plant construction costs and compact layout standards, bulky cooling equipment will occupy valuable installation space; meanwhile, insufficient heat exchange capacity cannot support the stable operation of high-flow air separation systems, restricting the full-load production of ASU units and indirectly reducing enterprise production benefits.

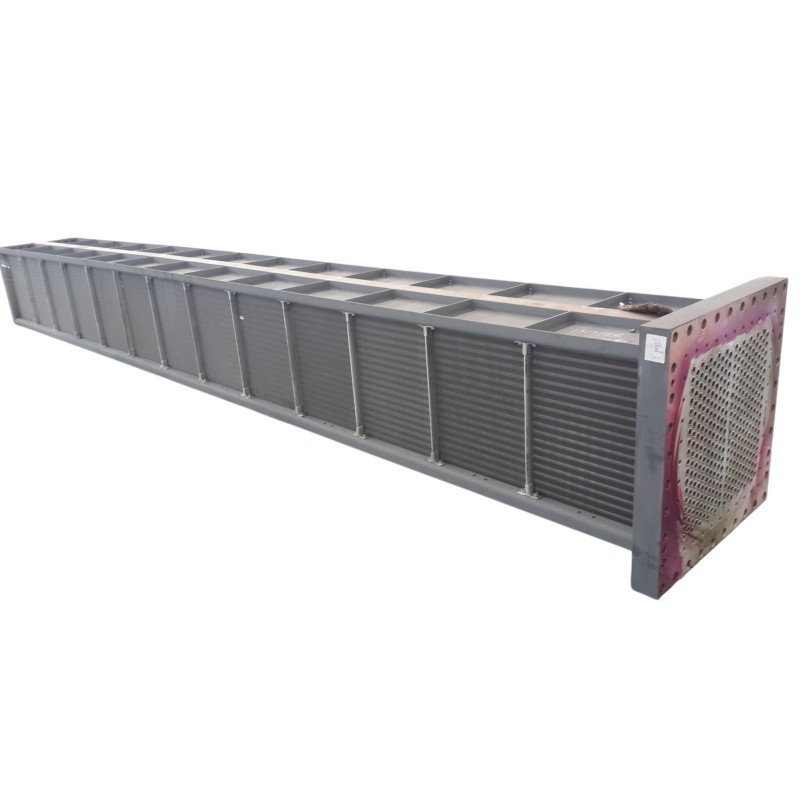

Targeted Solution Principle: Our Compressor Cooler for Air Separation Unit adopts self-developed enhanced heat transfer components and customized finned tube-shell composite structure. This design integrates the high pressure resistance and structural stability of traditional shell-and-tube heat exchangers and the high heat transfer efficiency and compact structure of finned tube heat exchangers. Through surface contact low thermal resistance technology, the heat transfer contact area is effectively expanded, and the thermal resistance of the heat transfer interface is greatly reduced. Test data verifies that its heat exchange efficiency is more than 30% higher than that of traditional ordinary shell-and-tube coolers. The compact integrated structure greatly reduces the overall equipment volume, saving a lot of on-site installation space for industrial users, and fully adapting to the layout requirements of compact and high-efficiency modern air separation production lines.

Pain Point 2: Excessive system pressure loss, leading to long-term high energy consumption and increased operating costs

In the operation process of air separation compressors, the pressure loss of the cooling system is a key factor affecting overall energy consumption. The internal flow channel design of traditional Air Separation Compressor Cooler is unreasonable, with disordered flow field and large flow resistance. The pressure loss of the system is usually above 8-10kPa. Long-term high pressure loss will cause the compressor to consume more power to maintain stable gas flow, resulting in continuous increase in industrial power consumption and greatly improved long-term operating costs for enterprises, which is not in line with the green energy-saving production standards pursued by European and Middle East industrial projects.

Targeted Solution Principle: For the flow field and internal structural defects of traditional cooling equipment, our team has completed multi-round simulation optimization and physical test verification for the internal flow channel of the ASU compressor intercooler aftercooler. The optimized internal structure realizes uniform and smooth fluid flow, effectively reduces turbulent flow and flow resistance inside the equipment. The ultra-low system pressure loss is as low as 3kPa, which minimizes the gas flow loss in the air separation compressor circulation system. This design fundamentally reduces the extra power consumption caused by pipeline and equipment resistance, realizes long-term green energy-saving operation of the unit, and effectively reduces the daily operating energy consumption cost of user enterprises.

Pain Point 3: Poor structural stability and corrosion resistance, causing frequent failures and short service life

Air separation units mostly operate in harsh industrial environments all year round. The cooling equipment needs to cope with alternating high and low temperatures, continuous vibration of compressor operation, and corrosive gas media such as air and CO₂ for a long time. Traditional coolers have single sealing structure, no targeted thermal compensation design, and ordinary surface coating process. They are prone to thermal cracking, sealing failure, medium leakage and structural deformation under long-term temperature difference alternation and vibration impact. In addition, poor corrosion resistance leads to rapid aging of core components, frequent equipment maintenance and replacement, which not only increases after-sales maintenance costs, but also causes production line shutdown losses and affects the stable operation of the entire air separation system.

Targeted Solution Principle: Our Air Separation Unit Cooler adopts multi-dimensional optimized structural design and customized anti-corrosion technology. First, the independent thermal compensation design can effectively offset the structural stress generated by temperature difference alternation and avoid equipment cracking and leakage problems caused by thermal expansion and contraction. The high-standard sealing structure matched with high-quality raw materials ensures excellent impact resistance and deformation resistance, eliminating medium leakage risks. Second, the unique uniform temperature and drag reduction design optimizes the internal stress distribution of the equipment, and the reinforced tube bundle support structure greatly improves the anti-vibration and anti-fatigue performance of the equipment, adapting to long-term continuous vibration operation of the compressor. In terms of anti-corrosion, the customized core group and professional coating process enable the equipment to resist corrosion of various industrial media and harsh environments, greatly extend the service life, and ensure the long-term stable and fault-free operation of the air separation compressor system. In addition, the built-in integrated gas-liquid separation unit realizes one-piece integration of cooling and separation, eliminating the need for additional supporting separation equipment, reducing user equipment investment and installation costs.

Practical Industrial Application Scenarios

Our Air Separation Unit Cooler series products are tailored for air separation compressor supporting scenarios, widely applicable to multiple high-demand industrial production environments in Europe and the Middle East, covering small, medium and large air separation unit projects, with strong scene adaptability and operational stability.

4.1 Large-Scale Industrial Gas Production ASU Project

In large-scale industrial gas production bases in the Middle East and Europe, air separation units need to operate 24 hours a day with high load to produce large quantities of nitrogen, oxygen and mixed industrial gases. Such projects have large gas flow (up to 125,000 Nm³/h), high system pressure and continuous high-load operation. The high-efficiency heat exchange and ultra-low pressure loss performance of our Compressor Cooler for Air Separation Unit can fully meet the long-term stable cooling demand of large ASU compressors. The anti-vibration and anti-fatigue structural design adapts to long-term continuous operation, avoiding frequent shutdown maintenance caused by equipment failure, and ensuring the continuous and stable output of industrial gas production lines.

4.2 Petrochemical & Energy Chemical ASU Supporting Scenarios

Petrochemical and energy chemical projects in desert industrial zones in the Middle East have harsh operating environments, with high ambient temperature, large temperature difference between day and night, and corrosive gas medium erosion. The customized anti-corrosion coating and high-grade corrosion-resistant metal materials of our Air Separation Compressor Intercooler and Aftercooler can resist external environmental corrosion and internal medium erosion. The temperature resistance of ≤200℃ and 0-8Mpa high pressure resistance can adapt to the high-temperature and high-pressure working conditions of chemical air separation supporting systems, ensuring the stable operation of ASU units in harsh chemical production environments and extending the service life of supporting equipment.

4.3 Medium-Sized Manufacturing & New Material ASU Supporting Projects

European precision manufacturing, new material processing and other medium-sized enterprises have compact plant layout and strict requirements on equipment energy consumption and space occupation. The compact structure and high-efficiency energy-saving advantages of our ASU compressor intercooler aftercooler are highly matched with such scenarios. The equipment occupies less installation space, and the ultra-low pressure loss design reduces enterprise energy consumption expenditure. The diversified material customization scheme can meet the differentiated working condition requirements of different new material production lines, providing flexible and efficient cooling support for medium-sized air separation units.

FAQ

Q1: Can the Air Separation Compressor Cooler support personalized customization for special working conditions?

Yes, full-scene personalized customization is supported. We can adjust core configurations such as heat exchange tube material, fin type, shell specification, sealing structure and anti-corrosion coating according to the user's actual working condition parameters (gas medium, pressure, temperature, flow rate and environmental corrosion degree). For special ASU projects with super large flow, special pressure or harsh corrosion environment, we can complete targeted structural optimization and scheme design to ensure that the equipment is fully adapted to the user's on-site working conditions. All customized schemes are based on original technical parameters without virtual performance improvement.

Q2: Is the equipment compatible with different brands and models of air separation compressors?

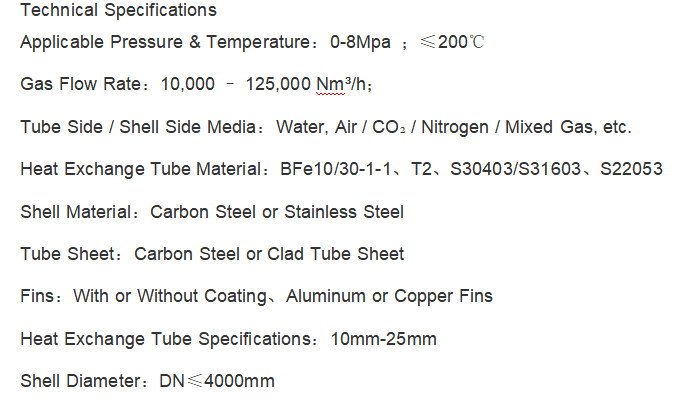

It has high universal compatibility. The product pressure range (0-8Mpa), temperature range (≤200℃) and gas flow range (0.1万-12.5万Nm³/h) cover the mainstream parameter range of commercial ASU compressors on the market. It is compatible with most mainstream
